Volvo XC90: Driver support / Pilot Assist displays
(Option/accessory.)
(Depending on market, this function can be either standard or optional.)
The following illustrations show how Pilot Assist can appear in the various displays in different situations.
Speed

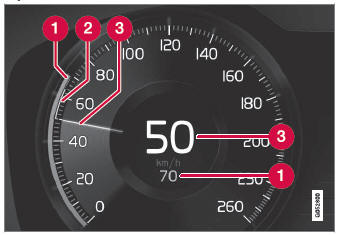

Speed indicators.
Set speed
Speed of the vehicle ahead
The current speed of your vehicle
Time interval
Pilot Assist will only regulate
the time interval to the vehicle ahead when the distance symbol shows a vehicle
(1) over the steering wheel symbol.
Pilot Assist's steering assistance is only active when the steering wheel symbol (2) changes from GRAY to GREEN.
When driving
In the following illustration, Road Sign Information (RSI1) indicates that the maximum permitted speed is 130 km/h (80 mph).
The previous illustration shows that Pilot Assist is set to maintain a speed of 110 km/h (68 mph) and that there is no target vehicle ahead to follow.
Pilot Assist will not provide any steering assistance because it cannot detect the lane's side marking lines.
The previous illustration shows that Pilot Assist is set to maintain a speed of 110 km/h (68 mph) and is following a target vehicle ahead that is traveling at the same speed.
Pilot Assist will not provide any steering assistance because it cannot detect the lane's side marking lines.
The previous illustration shows that Pilot Assist is set to maintain a speed of 110 km/h (68 mph) and is following a target vehicle ahead that is traveling at the same speed.
In this example, Pilot Assist will also provide steering assistance because it can detect the lane's side marking lines.
The previous illustration shows that Pilot Assist is set to maintain a speed of 110 km/h (68 mph) and that there is no target vehicle ahead to follow.
Pilot Assist will provide steering assistance because it can detect the lane's side marking lines.
1 Road Sign Information
