Volvo XC90 2015-2022 Owners Manual / Specifications / Air conditioning specifications

Volvo XC90: Specifications / Air conditioning specifications

The climate system in the vehicle uses a freon-free R1234yf refrigerant. For information regarding the refrigerant, refer to the decal located on the inside of the hood.

The prescribed grades and volumes for fluids and lubricants in the air conditioning system are shown below.

A/C Decal

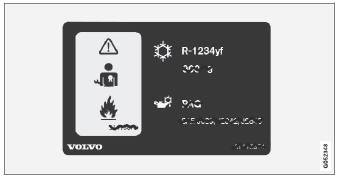

Decal for R1234yf

Volvo XC90. Air conditioning specifications

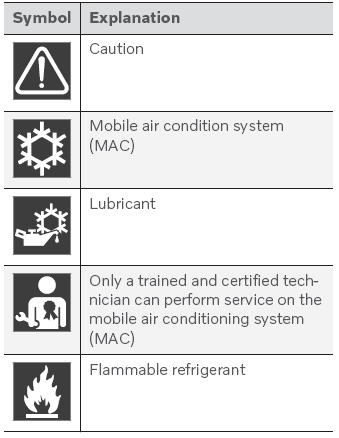

Explanation of symbols for R1234yf

Volvo XC90. Air conditioning specifications

Refrigerant

The refrigerant amount (charge level) is printed on a decal on the inside of the hood.

Vehicles with R1234yf refrigerant

Volvo XC90. Air conditioning specifications

Volvo XC90. Air conditioning specifications Refrigerant amount.

WARNING

The air conditioning system contains the refrigerant R1234yf under pressure. In accordance with SAE J2845 (Technician Training for Safe Service and Containment of Refrigerants Used in Mobile A/C System), service and repairs to the refrigerant system may only be performed by trained and certified technicians in order to ensure the safety of the system.

Compressor oil

Volvo XC90. Air conditioning specifications

A Vehicles with A/C for the third row of seats*.

Evaporator

CAUTION

The A/C system evaporator must never be repaired or replaced with a previously used evaporator. The new evaporator must be certified and labeled in accordance with SAE J2842.

* Option/accessory.
