Volvo XC90: Specifications / Type designations
The decals in the vehicle contain information such as chassis number, type designation, color code, etc.

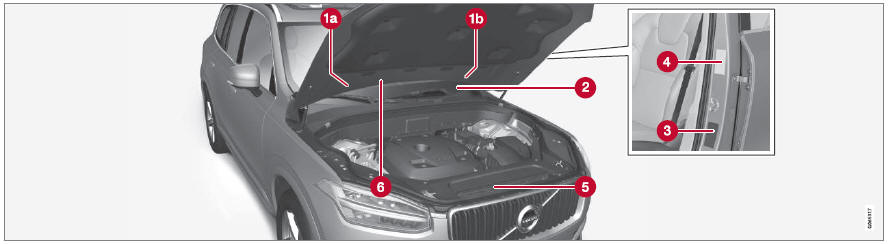

Location of decals
The illustration is general and details may vary depending on market and model.
Vehicle Emission Control Information.
US models. Your Volvo is designed to meet all applicable emission standards,
as evidenced by the certification label on the underside of the hood. For further
information regarding these regulations, please consult your Volvo retailer.

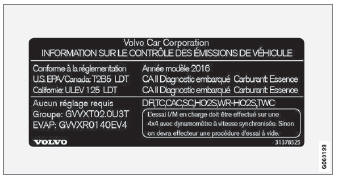

Vehicle Emission Control Information.
Canadian models. Your Volvo is designed to meet all applicable emission standards,
as evidenced by the certification label on the underside of the hood. For further
information regarding these regulations, please consult your Volvo retailer.

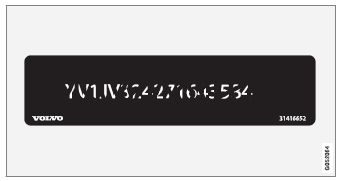

Vehicle Identification Number
(VIN). The VIN plate is located on the top left surface of the dashboard. The
Vehicle Identification Number (VIN) should always be quoted in all correspondence
concerning your vehicle with the retailer and when ordering parts.

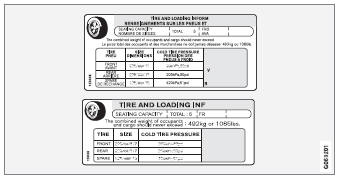

Tire inflation pressures.
This label indicates the correct inflation pressures for the tires that were on
the vehicle when it left the factory.

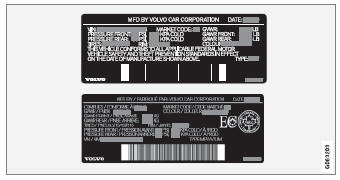

Federal Motor Vehicle Safety
Standards (FMVSS) specifications (USA) and Ministry of Transport (CMVSS) standards
(Canada). Your Volvo is designed to meet all applicable safety standards, as
evidenced by the certification label on the driver's side B-pillar (the structural
member at the side of the vehicle, at the rear of the driver's door opening). This
label also includes codes for paint color, etc. For further information regarding
these regulations, please consult your Volvo retailer. U.S. models have the upper
decal; Canadian models have the lower one.

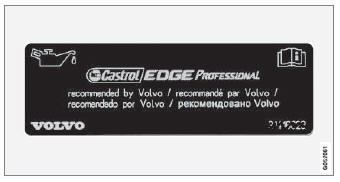

Engine oil. This label contains
the recommended engine oil specifications.

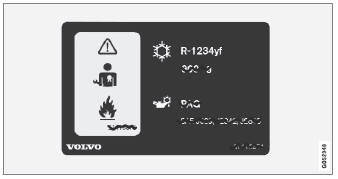

Decal A/C. Refrigerant R1234yf.
NOTE
The decals shown in the Owner's Manual do not claim to be exact reproductions of those found in the vehicle. The purpose is to show approximately how they look and about where they are located on the vehicle. The information that applies for your vehicle in particular is found on the decal on the vehicle.
Dimensions
The vehicle's length, height, etc. are shown in the table.
A For curb weight plus 1 person. (Varies slightly depending
on tire dimensions, chassis variant, etc...
