When hoisting the vehicle, it is important that the jack is positioned on the designated points under the vehicle.

Volvo XC90. Hoisting the vehicle

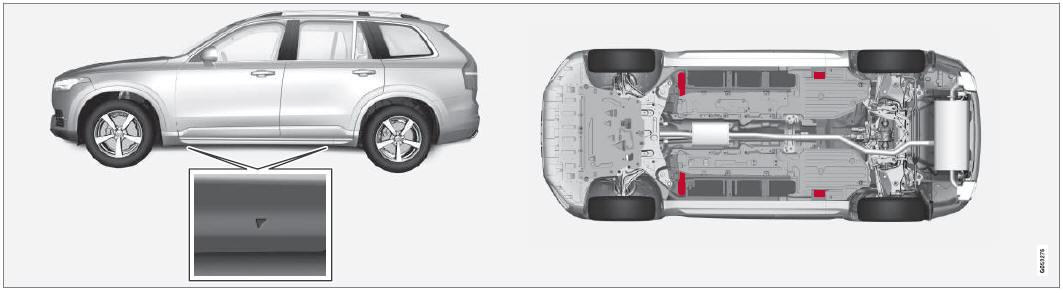

The triangles in the plastic covering indicate where the jack attachment points/lifting points (red areas) are located.

NOTE

For vehicles with Leveling Control*: If the vehicle is equipped with pneumatic suspension, this feature must be turned off before the vehicle is lifted onto a tow truck.

NOTE

Volvo recommends only using the jack intended for your specific vehicle model. If a jack other than that recommended by Volvo is used, follow the instructions included with the equipment.

The vehicle's ordinary jack is only intended to be used in temporary situations for short periods of time, such as when changing wheels in the event of a flat tire. If the vehicle needs to be lifted more frequently, or for a longer period of time than for a wheel change, a garage jack or hoist is recommended. Always follow the instructions for use provided with the equipment.

WARNING

  • Apply the parking brake and put the gear selector in the Park (P) position.
  • Block the wheels standing on the ground, use rigid wooden blocks or large stones.
  • Check that the jack is not damaged, the threads are properly lubricated and it is free from dirt.
  • Be sure the jack is on a firm, level, nonslippery surface and that it is upright and not leaning.
  • The jack must correctly engage in the jack attachment.
  • No objects should be placed between the base of the jack and the ground, or between the jack and the attachment bar on the vehicle.
  • Never let anyone remain in the vehicle when it is raised on a jack.
  • If a tire must be changed near passing traffic, make sure all passengers move to a safe location.
  • Use a jack intended for the vehicle when changing a tire. For any other job, use stands to support the vehicle.
  • Never crawl under or allow any part of your body to be extended under a vehicle supported by a jack.

WARNING

If the vehicle is lifted on a garage jack, the jack must be placed under one of the four lifting points. Make sure that the vehicle is correctly positioned on the jack and that it cannot slide off. Make sure the jack plate has a rubber pad to help keep the vehicle stable and prevent damage. Always use axle stands or similar.

When not in use, the jack* should be kept in its storage compartment under the cargo compartment floor.

Read through all instructions before starting. Before raising the vehicle using a jack or lift, take out all the tools you will need.

  1. Turn on the vehicle's hazard warning flashers if e.g. a wheel change must be performed in an area with traffic.
  2. Apply the parking brake and put the gear selector in P, or first gear if the vehicle has a manual transmission.

    If the vehicle is equipped with Leveling Control*, this feature must be turned off before the vehicle is lifted onto a tow truck.

  3. Place chocks in front of and behind the wheels that are still on the ground. For example, use heavy wooden blocks or large stones.

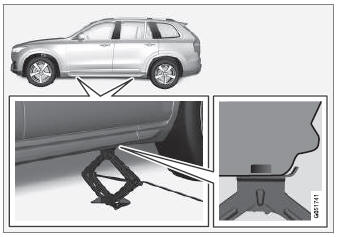

  4. Position the jack or garage lift arms at the designated points under the vehicle. The triangle markings on the plastic cover indicate where the jack attachment points/lifting points are located. There are two jack attachment points on each side of the vehicle. There is a groove for the jack at each attachment point.

    Volvo XC90. Hoisting the vehicle

  5. Position the jack under the attachment point being used, ensuring that the surface is firm, flat and not slippery.
  6. Crank it up until it is properly aligned and it is in contact with the vehicle's jack attachment point. Make sure the top of the jack (or the garage lift arms) is correctly positioned in the attachment point, with the bump on the top of the jack in the recess in the attachment point and its base positioned vertically under the attachment point.
  7. Turn the jack so that the crank is as far as possible from the side of the vehicle, which will position the jack's arms perpendicular to the vehicle's direction of movement.
  8. Raise the vehicle to a suitable height for the operation to be performed.

* Option/accessory.
