Volvo XC90 2015-2021 Owners Manual / Driver support / Location and field of vision of Park Assist Cameras

Volvo XC90: Driver support / Location and field of vision of Park Assist Cameras

The Park Assist Cameras (PAC1) can display a 360° panoramic view as well as separate views for each of the four cameras: rear, front, left and right.

360° view*

Volvo XC90. Location and field of vision of Park Assist Cameras

The location of the cameras and their approximate fields of vision.

The 360° view function activates all Park Assist Cameras and all four sides of the vehicle are shown in the center display at once to help the driver see what is around the vehicle while maneuvering at low speeds.

From the 360° view, each camera view can be activated separately:

  • Tap the screen to select the camera's field of vision, e.g. in the area in front/above the front camera.

Volvo XC90. Location and field of vision of Park Assist Cameras The active cameras will be indicated by a camera symbol on the vehicle symbol in the center display.

If the vehicle is equipped with Park Assist System*, the distance to detected obstacles will be illustrated by fields in different colors.

The cameras can be activated automatically or manually.

Back

Volvo XC90. Location and field of vision of Park Assist Cameras

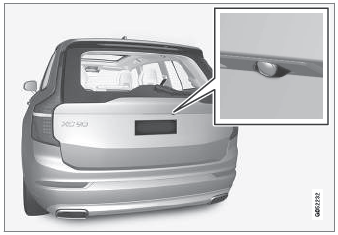

The rear camera is located above the license plate.

The rear camera shows a wide area behind the vehicle. On certain models, part of the bumper and the towbar (if installed) may be visible.

Objects on the center display may appear to be leaning slightly. This is normal.

Front camera

Volvo XC90. Location and field of vision of Park Assist Cameras

The front Park Assist Camera is located in the grille.

The front camera can be useful when pulling out from areas with limited visibility, such as when pulling out of a garage. The front camera is active at speeds up to 25 km/h (16 mph) and is automatically turned off when the vehicle exceeds this speed.

If the vehicle does not reach a speed of 50 km/h (30 mph) and speed falls below 22 km/h (14 mph) within 1 minute after the front camera turns off, the camera will be reactivated.

Side cameras

Volvo XC90. Location and field of vision of Park Assist Cameras

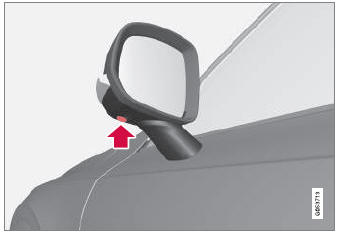

The side cameras are located in the rearview mirrors.

The side cameras can show views along each side of the vehicle.

1 Park Assist System

* Option/accessory.
