Volvo XC90: Lighting / Operating the power windows
All power windows can be operated using the control panel in the driver's door. The control panels in the other doors can be used to operate that particular door.
The power windows have pinch protection. If there is any problem with the pinch protection, a rest procedure can be tested.
WARNING
Children, other passengers or objects can be trapped by the moving parts.
- Always operate the windows with caution.
- Do not allow children to play with the operating controls.
- Never leave a child alone in the vehicle.
- Remember to always cut the current to the power windows by setting the vehicle's electrical system to ignition mode 0 and then taking the key with you when leaving the vehicle.
- Never stick objects or body parts out through the windows, even if the vehicle electrical system is completely turned off.

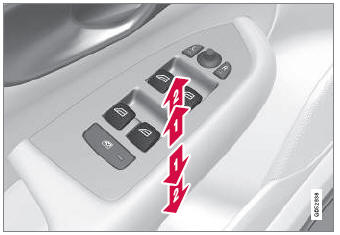

Operating the power windows.
Operating manually. Move one of
the controls slightly up or down. The power windows go up or down while the control
is held in position.
Operating with automatic controls.
Move one of the controls up or down to its end position and release it. The window
moves automatically to its fully closed/open position.
To use the power windows, the ignition must be in at least mode I or II. After the ignition has been switched off, the power windows can be operated for several minutes or until a door is opened. Only one control can be operated at a time.
It can also be operated using keyless opening* with the door handle.
WARNING
Make sure that no child or other passenger comes into contact with the windows as they are closing with keyless closing*.
NOTE
One way to reduce the pulsating wind noise heard when the rear windows are open is to also open the front windows slightly.
NOTE
The windows cannot be opened at speeds over approx. 180 km/h (ca 112 mph), but they can be closed.
The driver is always responsible for following applicable traffic regulations.
NOTE
It may not be possible to operate the windows in low temperatures.
* Option/accessory.
