Volvo XC90 2015-2023 Owners Manual / Safety / Infant seats

Volvo XC90: Safety / Infant seats

Suitable child restraints should always be used when children (depending on their age/size) are seated in the vehicle.

Securing an infant seat with a seat belt

Volvo XC90. Infant seats

Do not place the infant seat in the front passenger's seat

  1. Place the infant seat in the rear seat of the vehicle.
  2. Attach the seat belt to the infant seat according to the child restraint manufacturer's instructions.

    Volvo XC90. Infant seats

    Route the seat belt through the infant seat.

    WARNING

    An infant seat must be in the rear-facing position only.

    The infant seat should not be positioned behind the driver's seat unless there is adequate space for safe installation.

    WARNING

    A child seat should never be used in the front passenger seat of any vehicle with a front passenger airbag - not even if the "Passenger airbag off" symbol near the rear-view mirror is illuminated. If the severity of an accident were to cause the airbag to inflate, this could lead to serious injury or death to a child seated in this position.

  3. Volvo XC90. Infant seats

    Fasten the seat belt.

    Fasten the seat belt by inserting the latch plate into the buckle (lock) until a distinct click is audible.

    Volvo XC90. Infant seats

    Pull out the shoulder section of the seat belt.

  4. Pull the shoulder section of the seat belt out as far as possible to activate the belt's automatic locking function.

    NOTE

    The locking retractor will automatically release when the seat belt is unbuckled and allowed to retract fully.

  5. Press the infant seat firmly in place, let the seat belt retract and pull it taut. A sound from the seat belt retractor's automatic locking function will be audible at this time and is normal. The seat belt should now be locked in place.

    Volvo XC90. Infant seats

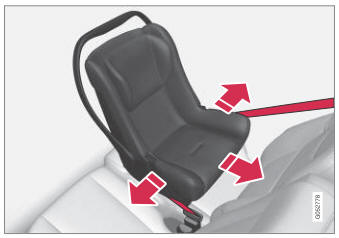

    Check that the infant seat is properly secured.



  6.  Press and pull the infant seat along the direction of the seat belt to check that it is properly held in place by the seat belt.

    WARNING

    It should not be possible to move the child restraint more than 2.5 cm (1 in.) in any direction along the seat belt path.

    Volvo XC90. Infant seats

    When installing infant seats in the rear seat, Volvo recommends maintaining a distance of at least 50 mm (2 inches) from the front-most part of the infant seat to the rearmost part of the seat in front.



The infant seat can be removed by unbuckling the seat belt and letting it retract completely.

    Child restraints

    Suitable child restraints should always be used when children travel in the vehicle. Child restraint systems Infant seat There are three main types of child restraint systems: infant seats, convertible seats and booster cushions...

    Convertible seats

    Suitable child restraints should always be used when children (depending on their age/size) are seated in the vehicle. Securing a convertible seat with a seat belt Do not place the convertible seat in the front passenger's seat...
