Volvo XC90: Key, locks and alarm / Keyless tailgate unlock
(Option/accessory.)

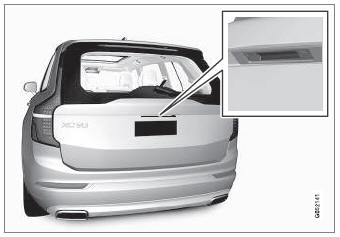

With keyless locking and unlocking, the tailgate can be unlocked by lightly touching the rubberized button on the tailgate handle.
NOTE
One of the vehicle's remote keys must be within range behind the vehicle for unlocking to be possible.
The tailgate is held closed by an electronic locking mechanism.
To open:
- Lightly press the rubberized pressure plate on the underside of the tailgate
handle.
- The lock will disengage.
- Lift the outer handle to open the tailgate.
CAUTION
- Only light pressure on the rubberized pressure plate is necessary to release the tailgate's locking mechanism.
- Use the handle to lift the tailgate and do not apply force to the rubberized pressure plate. Too much force can damage the pressure plate's electrical connections.
Hands-free unlocking of the tailgate is also possible using a foot movement under the rear bumper; see the separate section.
WARNING
Do not drive with the tailgate open. Toxic exhaust fumes can be sucked into the vehicle through the cargo compartment.
Keyless unlock settings
(Option/accessory.)
Several different sequences are available for keyless unlocking.
To change this setting:
Tap Settings in the center display's Top view...
Antenna locations for the start and lock system
The antennas for the keyless start system and keyless locking system* are
integrated in the vehicle.
Location of the antennas:
Under the cup holder in the front
section of the tunnel console
In the upper front section of the
left-side rear door1
In the upper front section of the
right-side rear door1
In the center of the rear seat backrest1
WARNING
Individuals with an implanted pacemaker ..
