Volvo XC90: Driver support / Run-Off Mitigation with steering assistance

Steering assistance has several sub-functions. Run-Off Mitigation with steering assistance can help the driver and reduce the risk of the vehicle inadvertently running off the road by actively steering the vehicle back onto the road.

This function has two activation levels for intervention:

  • Steering assistance only
  • Steering assistance with braking

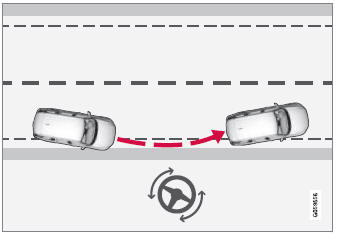

Steering assistance only

Volvo XC90. Run-Off Mitigation with steering assistance

Intervention with steering assistance

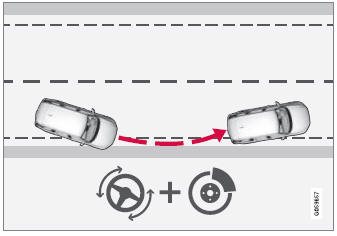

Steering assistance with braking

Volvo XC90. Run-Off Mitigation with steering assistance

Intervention with steering assistance and braking

Braking intervention assists in situations where steering assistance alone is not sufficient. Braking force is automatically adapted according to the situation at the moment the vehicle begins to run off the road.

The function is active at speeds between 65-140 km/h (40-87 mph) on roads with clearly visible traffic lane markings/lines.

The system uses a camera to monitor the edges of the road and the painted side marker lines. If the vehicle is about to cross the edge of the road, the function will attempt to steer the vehicle back onto the road. If this is not sufficient to keep the vehicle on the road, the brakes will also be applied.

However, the function will not provide either steering assistance or braking if the turn signal is used. The function will also not be activated if it detects that the driver is actively operating the vehicle.

    Activating or deactivating steering assistance during collision risks

    The steering assistance function is optional – the driver can choose to have it activated or deactivated. Activate or deactivate the function using this button in the center display's Function view...

    Steering assistance during collision risks from oncoming traffic

    Steering assistance has several sub-functions. Steering assistance during collision risks from oncoming traffic can help a distracted driver who has not noticed that the vehicle is veering out of the lane...
